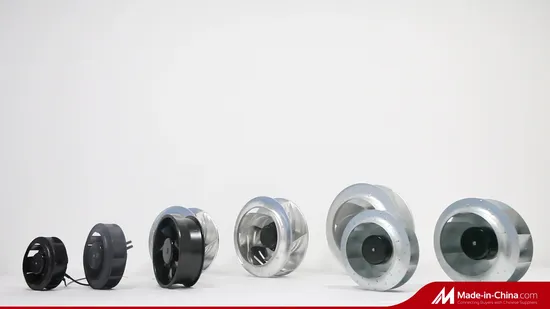

Factory Price FFU 280mm Ec AC DC Motor Backward Curved Centrifugal Blower Fan with Motor Speed Air Clean Equipment Systems

• Overview
• Product Description
• Aerodynamic Performance Charts
• Connection diagram
• Applications
• Packaging & Shipping
• Related Products
• Company Profile
• FAQ

Overview

Basic Info.

Model NO.	FB3G280-4AAL-30
Motor Type	Dia 137mm Brushless Ec External Rotorr Motor
Impeller Material	Aluminium Alloy
Rated Voltage	380V
Rated Current	1.9A
Rated Speed	3500rpm
Power	1100W
Noise Level	88dB(a)
Air Flow	3650m3/H
Air Pressure	1280PA
Speed Control	0-10VDC/PWM/Modbus485
Insulation Class	F
Proection	IP54
Bearing	Ball Bearing
N.W.	7.35kg
Transport Package	Carton+Pallet
Specification	280mm
Trademark	Fanova
Origin	Suzhou
HS Code	8414593000
Production Capacity	50000PCS/Month

Packaging & Delivery

Package Size32.50cm * 32.50cm * 30.00cm Package Gross Weight8.000kg

Product Description

Electrical Characteristics

HVAC
EC fans are widely applied in HVAc systems, especially where speedcontrol function is required and noise reduction matters.

Cooling
EC fans are essentially fans with brushless Dc motor, combining theadvantages of Ac and Dc power.

Air Purification
Apart from smart control and energy-saving, the compact size is oneof the significant features of EC fans.

Refrigeration
Energy-saving is the most important feature that will be taken into
consideration because the evaporator fan motors run twenty four
hours a day.

Automotive equipment
The EC brushless motorized fans can be used both in combustionengine thermal circuits and in electric vehicles.

Medical Equipment
EC fans, with high performance, efficient energy consumption, low
noise level,etc, are also favored in medical industry.

Domestic:7 days, Foreign: around 12 days old opening within 45 days of R&D.

Q1:What kind of payments do you support?

A1: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment

Q2.Will you provide samples?

A2: Yes, samples can be delivered within 10days on request.

Q3:How can I place the order?

A3: We need the information like fan type, quantity, size, material, voltage, air flow and static pressure and usually quote you within 24 hours after we get your inquiry. First sign the PI,pay deposit,then we will arrange the production.After finished production need you pay balance. Finally we will ship the Goods.

Q4:About transportation

A4: All available shipping ways could be applied, express shipping, air or sea. Appointed shipping company or our own forwarders all could be used in shipment. Full-way tracking the cargos for you before the goods arrive.

Q5:After-sales service

A5: We will provide professional after-sales service, patiently answer customers' various problems to ensure the normal operation of products .

Product Description

1. High Efficiency: Our centrifugal fans are capable of delivering high airflow rates and pressure while minimizing energy consumption, ensuring optimal performance and efficiency.

2. Low Noise: Employing advanced fluid dynamics technology to adjust blade angles for high airflow while minimizing noise levels.

3. Wide Application Range: Suitable for a diverse range of industries and environments, including industrial ventilation, HVAC systems, agriculture, construction, automotive, and more, offering flexible customized solutions (OEM/ODM).

4. Sustainable Development: Our fans are designed with energy-saving and environmentally friendly features. Utilizing new materials such as fiberglass-reinforced plastic, they meet eco-friendly energy requirements, withstand harsh working conditions, and provide long-term reliability.

5. Easy Installation and Maintenance: Equipped with installation grilles and duct mounting options, our fans feature user-friendly designs and easily maintainable components, facilitating hassle-free maintenance.

Type	Nominal Voltage	Nominal Voltage Range	Frequency	Current(A)	Speed(min-1)	Max. Input Power(W)	Sound Level(dB(A))	Air Flow(m³/H)	Air Pressure(Pa)
FB3G280-4AAL-30	380VAC	304~456	50/60Hz	1.9	3500	1100	88	3650	1280

Voltage Output	Output +10VDC, max. 1.1 mA (Can be used as speed control input voltage or FG signal pull-up voltage,and need to be circumscribed in series with a pull -up resister, details as connection diagram.)
Dielectric Resistance	10mA maximum at 1800VAC 50Hz one second Between frame and (+) terminal
Life Expectance	50,000 Hours(L10)
Leakage Current	≤3.5mA (Max. )
Direction of Air Flow	Straight forward from air outlet
Motor	External rotor EC motor
Technical features	Motor current limitation
	Soft starting Protection
	Under/Over voltage detection
	Thermal overload protection for electronics/motor
	Line undervoltage detection
	Locked-rotor Protection
	Reverse Polarity Protection
Operating Temperature	-25ºC (Min. )	60ºC (Max. )
	Heat sink of IC	115ºC (Max. )
	Other electronic parts	85ºC (Max. )
	Ball bering	80ºC (Max. )
	Lead Wire	120ºC (Max. )
Storage Temperature	-40ºC to 75ºC
Operating Humidity	5% to 90% RH
Storage Humidity	5% to 95% RH
Electronics housing material	Die-cast aluminum
Operation Mode	S1
Motor bearing	Ball bearing
Valid For Approval/Standard	CE,RoHS,ErP2015

Aerodynamic Performance Charts

Connection diagram

Applications

Packaging & Shipping

Related Products

Company Profile

Fanova (Suzhou) Motor Technology Co., LTD is a specialized research, design, and production enterprise focusing on AC fans, DC motors, centrifugal fans, axial fans, and cross-flow fans. Established in 2003, the company has evolved into a prominent player in the motor and fan industry, providing customers with high-quality products and outstanding services. It has established a strong influence in the market and earned a reputation for its commitment to innovation, reliability, and customer satisfaction.

As a professional EC fan manufacturer, we possess advanced production equipment and a skilled technical team dedicated to providing comprehensive solutions to our customers. Our products are widely used in various industries, including industrial, commercial, and residential sectors, covering applications such as purification equipment, HVAC equipment, ventilation equipment, transportation facilities, medical facilities, household appliances, and machinery. We aim to provide customers with efficient and energy-saving solutions for airflow power needs.

The company boasts a professional R&D team, dedicated to driving continuous innovation and technological breakthroughs in product development. Our R&D efforts focus on exploring new plastic materials, enhancing motor and fan designs, improving manufacturing processes to stay at the forefront of industry trends. Our products have passed multiple international certifications, including CE, UL, ROHS, providing customers with reliable assurance and meeting the diverse needs of different application areas.
