Ec Axial Fan 400 mm 16in Flow Fan External Rotor Motor Powered Axial Fan

Overview Package Size34.00cm * 35.00cm * 14.50cm Package Gross Weight3.500kg Compared with conventional axial flow fans,

Send inquiry

Overview
Product Description
Detailed Photos
Product Parameters
Related products
Certifications
FAQ

Overview

Basic Info.

Model NO.	YWF
Type	Axial Fan
Electric Current Type	AC
Mounting	Free Standing
Certification	RoHS, ISO, CE, CCC, Atex
Delivery Time	5-9days
Warranty	1year
Thread Size	G1/2", G3/4". G1"
Power	0.15kw-0.75kw
Voltage	110V/220V/380V
Protection Grade	IP54
Speed	2800r/Min
Brand Name	Cherubim
Customized	Oed/ODM
Transport Package	Carton
Specification	300X180X150 cm
Origin	China
Production Capacity	50000set/Month

Packaging & Delivery

Package Size34.00cm * 35.00cm * 14.50cm Package Gross Weight3.500kg

Product Description

Compared with conventional axial flow fans, this fan has high efficiency, low noise, small vibration, compact structure, beautiful appearance, the impeller is directly fixed on the outer circle, and the axial dimension is shorter. Its successful development is a major milestone for axial flow fans. A breakthrough has reached the international advanced level. Due to its high efficiency, low noise, low vibration, and short suction size, this series of fans can replace conventional axial flow fans, and can also be used in kitchens, bathrooms, industrial mines, etc. where oil, smoke, and dust are serious.

1. How can we guarantee quality?
Always a pre-production sample before mass production.
Always final Inspection before shipment.

2.Do you have any MOQ limit for light order?
MOQ, 1pc for sample checking is available.

3. Can you accept put my logo on light product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

4.What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW.
Accepted Payment Currency: USD,GBP,CNY.
Accepted Payment Type: T/T,L/C.
Language Spoken: English,Chinese

5.Warranty
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly,
during the guarantee period, we will send new lights with new order for small quantity. All products have been tested before the shipment and it was packaged in good condition.For defective batch products,
Please tested the products at first before you assemble it, if any problem here, please inform us within 3 days of receipt. We can arrange the replacement for you if the situation is confirmed.

Product Description

Thickened material
Strong material, not easy to damage, oil-proof and moisture-proof

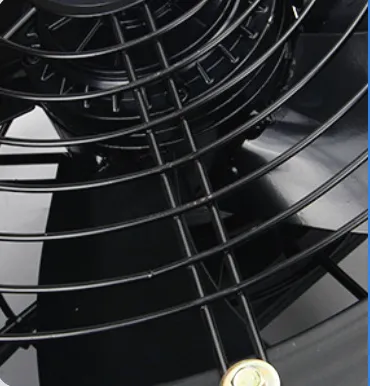

Precision mesh cover
Pressure resistance without deformation, plastic spraying process

Fully enclosed motor
Pure copper fully enclosed motor, oil-proof and moisture-proof, long life, corrosion-resistant

Detailed Photos

Product Parameters

Model	Rated Voltage (V)	Frequency(Hz)	Input Power (W)	Highest Speed (r/min)	Volume(m³)	Pressure(Pa)	Noise db (A)
YWF2D-200	380	50	75	2700	1080	122	57
YWF2E-200	220	50	73	2650	1050	120	56
YWF4D-200	380	50	40	1450	750	58	50
YWF4E-200	220	50	45	1450	750	58	50
YWF2D-250	380	50	105	2650	1850	190	65
YWF2E-250	220	50	100	2650	1800	190	65
YWF4D-250	380	50	55	1450	1250	60	55
YWF4E-250	220	50	60	1440	1230	60	55
YWF2D-300	380	50	160	2650	3250	205	66
YWF2E-300	220	50	170	2650	3300	210	66
YWF4D-300	380	50	90	1400	1950	70	60
YWF4E-300	220	50	90	1400	1950	70	60
YWF2D-350	380	50	380	2600	4850	225	73
YWF2E-350	220	50	380	2600	4750	223	72
YWF4D-350	380	50	130	1400	3270	93	64
YWF4E-350	220	50	125	1400	3270	93	64
YWF2D-400	380	50	500	2550	6480	240	74
YWF2E-400	220	50	430	2550	6100	240	80
YWF4D-400	380	50	200	1400	4800	125	68
YWF4E-400	220	50	190	1400	4800	125	68
YWF4D-450	380	50	230	1390	5410	155	70
YWF4E-450	220	50	240	1380	5380	150	69
YWF4D-500	380	50	420	1390	8850	192	72
YWF4E-500	220	50	400	1390	8850	190	72
YWF4E-550	380	50	565	1350	10800	215	74
YWF4E-550	220	50	580	1350	10800	215	74
YWF4D-600	380	50	730	1380	13000	230	75
YWF4E-600	220	50	750	1380	13000	230	75
YWF4D-600	380	50	800	1300	13000	235	76
YWF4E-600	220	50	780	1300	13000	235	76
