DC/Ec Brushless Frameless Bracket Centrifugal Air Diffuser Fan 11030

Basic Info.

Model NO.	G11030
Type	Centrifugal Fan
Electric Current Type	DC
Mounting	Free Standing
Certification	RoHS, ISO, CE, CCC, TUV, Reach, SGS
Bearing Type	Sleeve or Ball
Voltage	5V/12V/24V
Speed	1600~2400rpm/Customization
Current	0.06~0.22A/Customization
Air Flow	26.92~45.87cfm/Customization
Pressure	1.4~3.7mmaq/Customization
Noise	22~38dba/Customization
Weight	120g
Color	Black
Function	Fg/PWM/Autorestart/Rd.etc
Feature	Large Air Flow, Lower Noise, Long Lifetime
Transport Package	Standard Export Carton
Specification	100x100x30mm
Trademark	CHUNGFO/HUITONG/OEM
Origin	China
HS Code	841459300
Production Capacity	1500, 000 PCS/Per Month

Product Description

·All reading are typical values at rated voltage.·Parameters can be set according to customer requirements.

More Models

ApplicationWe are committed to solving cooling and ventilation problems of electronic products, household appliance, medical equipment, communication equipment and other industries.

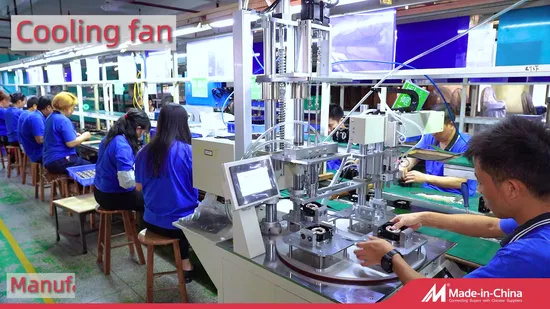

What is our factory like?

Building trust in professional services.

Thank you for your trust and we are honored to cooperate with you.We will try our best to ensure the quality of products and provide high quality service.

DC FRAMELESS BRACKET FAN φ100x30mm

General Specification: Frame:PBT(Black)UL94V-0Impeller:PBT(Black)UL94V-0Operating Temperature:-10ºC~70ºCMotor Protection: Auto Restart or Polarity ProtectionInsulation Resistance: 20MΩ or over with a DC500V MeggerDielectric Withstand Voltage: AC500V 1sBearing Type: Sleeve Bearing or Ball bearing

Model No.	Bearing Type	Voltage (V)	Speed Type	Speed (RPM)	Current (A)	AirFlow (CFM)	Pressure (mmAq)	Noise (dBA)	Weight (g)
G11030	S/D	12	H	2400	0.22	45.87	3.70	38	120
			M	2000	0.12	36.16	2.40	31
			L	1600	0.06	26.92	1.40	22

Type	Model	Size
DC FRAMELESS BRACKET FAN	G09225	φ92x25mm
	G11030	φ100x30mm
	G12030	φ120x30mm
	G12040A	φ120x40mm
	G12040B
	G12040C
	G12540	φ125x40mm
	G14044	φ140x44mm
