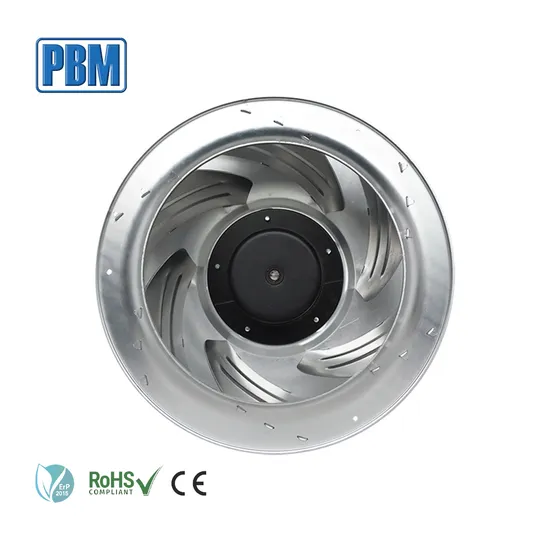

250mm Speed Adjustablehvac Ec Centrifugal Fan with Inlet Ring

• Overview
• Product Description
• Application Scopes
• Certifications
• Company Profile
• Our Advantages
• Packing Detail
• FAQ

Overview

Basic Info.

Model NO.	PB3N250B2EH
Type	Centrifugal Fan
Electric Current Type	AC
Mounting	Wall Fan
Certification	RoHS, CE
Name	250mm Ec Centrifugal Fan with Inlet Ring
Fan Feature	0~10VDC/PWM Speed Control, Tach Output
Motor Type	Ec Brushless External Rotor Motor
Bearing Type	Ball Bearing
Usage	Heat Exchanger, Free Cooling Unit
Rated Voltage	230 VAC
Rated Speed	3550 Rpm
Weight	4.2kg
Operating Voltage	184~276 VAC
Input Power	387 W
Air Flow	1212.31cfm / 2060 M3/H
Static Pressure	4.12inh2o / 1030PA
Acoustical Noise	80 dB(a)
Insulation Class	Class B
Transport Package	Standard
Specification	102mm motor, 250mm impeller
Trademark	PBM
Origin	Suzhou
HS Code	8414593000
Production Capacity	50, 000PCS/Year

Packaging & Delivery

Package Size34.00cm * 34.00cm * 24.00cm Package Gross Weight4.700kg

Product Description

250mm Speed Adjustablehvac EC Centrifugal Fan with Inlet Ring

PBM is a China mainland EC(Electronically Commutated) brushless motor manufacturing and technology consulting company offering an extensive range of EC motors, fans and intelligent ventilation solutions for air-moving precisely and constantly with maintenance-free throughout the life cycle of products in last decades.
PBM fans are widely used in many fields. For example, axial fan for telecom, backward curved centrifugal fan for air exchanger,(inline duct fan)hydroponic products and FFU, forward curved centrifugal fan for air purifier and air conditioning,blower for kitchen.

1.General Characters

2.Mechanical Characters
3.Environmental Characters
4.Outline Drawing

Note: 1.Connection line: AC(3×AWG20#),DC(4×AWG22#)
2.AC: Brown=Live Line,Blue=Null Line,Green & Yellow=Protecting Earthing;
3.DC: Red=Voltage Output +10VDC, Yellow=0-10VDC/PWM, White=FG, Blue=GND;


5.Performance Curved

Testing Condition:
Input Voltage----Operating voltage (230VAC/50Hz)
Temperature-----Room temperature
Humidity---------65%RH

Related Products

280*280*80mm Waterproof 250*74.2mm Waterproof IP55 160*100mm Waterproof IP55 48VDC Dual Inlet Centrifugal
IP55 Fan Ec-AC Axial Fan Fan Ec-AC Axial Fan Forward Curved Centrifugal Fan Blower Fan with 146mm Impeller
FOB Price:US $51.4-57.4/Piece FOB Price:US $40.7-45.5/Piece FOB Price:US $51.2-57.2/Piece FOB Price:US $52-58/Piece Contact Now Contact Now Contact Now Contact Now

225*99mm Waterproof IP55 140 Single Inlet Ec Centrifugal 175*95mm Ec-AC Backward 310*149.5mm Ec-AC Backward
Fan Ec-AC Backward Cur... Air Blower Fan Centrifugal Fan for HVAC Curved Centrifugal Fan
FOB Price:US $53.1-59.3/Piece FOB Price:US $49-56/Piece FOB Price:US $45.2-48.88/Piece FOB Price:US $73.95-75.78/Piece Contact Now Contact Now Contact Now Contact Now

Advantages:1.Five Years Warranty:Five Years Warranty for all of our EC fan products;2.Fast delivery time:3-days for sample making and 4-weeks lead-time for first mass production delivery;3.Quality assurance:Efficient supply chain management with automatic production process guarantee price competitive products providing;4.Complete product certification:We have CCC, UL,CE,RoHs enabling them to use a label that recognises their products quality

Application Scopes:Ventilation & Purification / Air Conditioning / Refrigeration / IT & Electronic Industry / Medical Industry / Heating / Automotive Industry / Household Electric Appliances / Cloud Date Center / Mechanical Equipment and Systems. Partners:Galanz / Systemair / Nuaire / MCRT Certificate Show:UL / CE / Rohs
About PBM:High Quality EC Fan / Competitive Price / Strong Team / Long Life Expectance / Fast Delivery / Customization Available / Attentive Service / Professional Assistance

FAQ

1. Where is your factory located?
Our factory is located in Suzhou City, China, about 60mins from Shanghai Airport by car. Warmly welcome to visit us!

2. What products do you make?
We have specialized in EC fans for over 10 years since we stepped into the field in 2005. We also provide AC fans, crossflow fans, etc.

3.What kind of payments do you support?
T/T, other types please contact us.

4.What information do you need in order to get a quotation?
Generally, we need the information like fan type, quantity, size, material, voltage, air flow and static pressure.

5.Can I have samples for testing before placing orders?
Yes. We suggest that our customers have some samples of their required fans for quality testing first.

6.Transportation
All available shipping ways could be applied, express shipping, air or sea. Appointed shipping company or our own forwarders all could be used in shipment. Full-way tracking the cargos for you before the goods arrive.

7.Global Market
Depending on advanced technology and knight service, we establish a good and diligent team and keep nice business relationship with a large amount of worthy clients in global market. We are prepared to provide the best fans to clients at competitive price. In addition to control of cost and quality, our stipulated lead-time, variety of designs, capability of product development and flexibility of service bring convenience and value added services to the clients.

8.Contact Us
We highly appreciate your any enquiry by email, call or instant message.
Model:PB3N250B2EH
Product Description

Rated Voltage	230 VAC
Frequency	50/60 Hz
Operating Voltage	184~276 VAC
Rated Speed	3550 RPM
Input Current	1.72 A
Input Power	387 W
Air Flow	1212.31 CFM / 2060 m3/H
Static Pressure	4.12 inH2O / 1030 Pa
Acoustical Noise	80 dB(A)
Life Expectance	50,000 Hours(L10)At 40ºC room, humidity 15%~65%RH.
Insulation Class	Class B
Motor Protection	Locked rotor protectionPolarity protectionAutomatic restart capability
Speed Control	Control input 0~10VDC / PWM
Protection Type	IP44
Signal Output	FG (Frequency Generator)

Dimension	Ø250mm X 156.5mm (see dimension drawing)
Material of Impeller	Galvanized Metal Shell
Number of Blades	11
Bearing System	NMB ball bearing
Lead Wire	AC(AWG20#),DC(AWG22 #)

Operating Temperature	-25ºC to 60ºC
Storage Temperature	-40ºC to 75ºC
Operating Humidity	5% to 90% RH
Storage Humidity	5% to 95% RH
