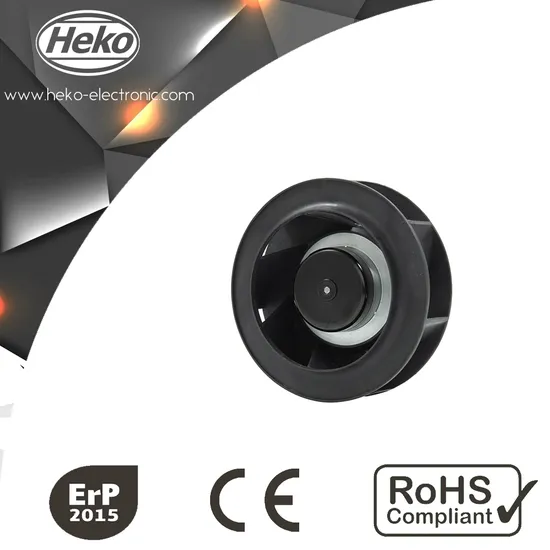

175mm DC Backward Curved Centrifugal Fan with Brushless Motor

Place of origin: Jiangsu, China Fan type: Backward Curved Centrifugal Fan Model no.: HB175-072D024U/ HB175-072D048U Rate

Send inquiry

Basic Info.

Model NO.	HB175-072D024U/HB175-072D048U
Electric Current Type	DC
Certification	RoHS, CE, Reach
Rated Current	3.2/1.6A
Rated Speed	3900rpm
Air Pressure	645PA
Noise Level	72dba
Frequency	50/60Hz
Motor Type	Brushless DC External Rotor Motor
Type of Protection	IP44
Insulation Class	Class B
Speed Control	0-10VDC/PWM
Bearing	Ball Bearing
Trademark	HEKO
Origin	Suzhou
HS Code	8414593000
Production Capacity	20000PCS/Month

Product Description

Place of origin: Jiangsu, China
Fan type: Backward Curved Centrifugal Fan
Model no.: HB175-072D024U/ HB175-072D048U
Rated Voltage: 24/48VDC
Impeller Size: Ø175*68mm
Rated Speed: 3900RPM
Air Flow: 695M³/H
Brand Name: HEKO
Motor Type: Brushless DC(BLDC) external rotor motor
MOQ: 1~200 pcs based on EXF price; 200pcs above based on FOB price.
Payment terms: T/T; L/C; Paypal
